What if our next partner was you?

Learn how our LiDAR solutions can integrate seamlessly with your UAVs. Let’s revolutionize your mapping capabilities together.

Deltaquad

Unmatched operational capability

PAYLOAD

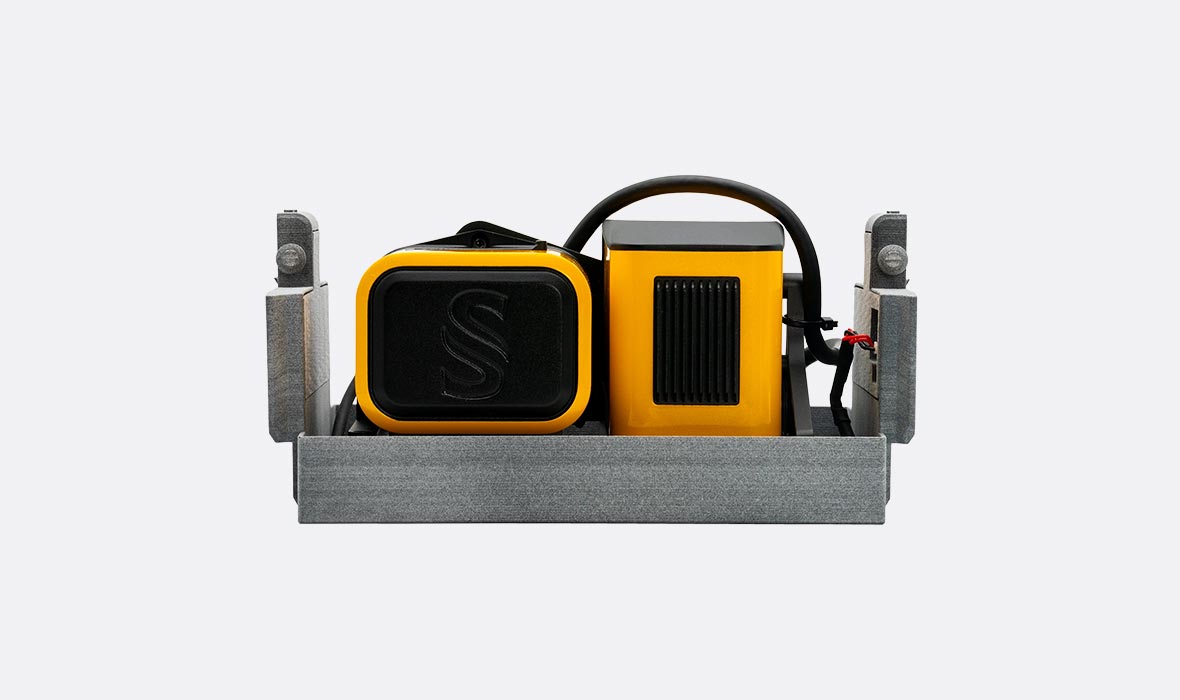

MAPPER+ OEM A

Ys oem website partners deltaquad mapper plus oem A

100 m

AGL Altitude

3.5 cm

System precision

4 cm

System accuracy

500 ha

Maximum coverage

View detailed characteristics
Precision3.5 cm
Accuracy4 cm
Typ. flight speed10 m/s
Max. AGL altitude100 m
Laser wavelenght905 nm
Laser rangeUp to 320 m
Laser scannerLivox AVIA
GNSS-Inertial solutionApplanix APX-15 UAV
Scanner field-of-view70.4° x 4.5°
Echoes per shotUp to 3
Shots per secondUp to 240k
Weight1.1 kg (2.4 lbs) battery excluded
SizeL 150 x W 104 x H 132 mm
Autonomy60 min
Power consumption35 W
Operating temperature-10 to +40 °C

PAYLOAD

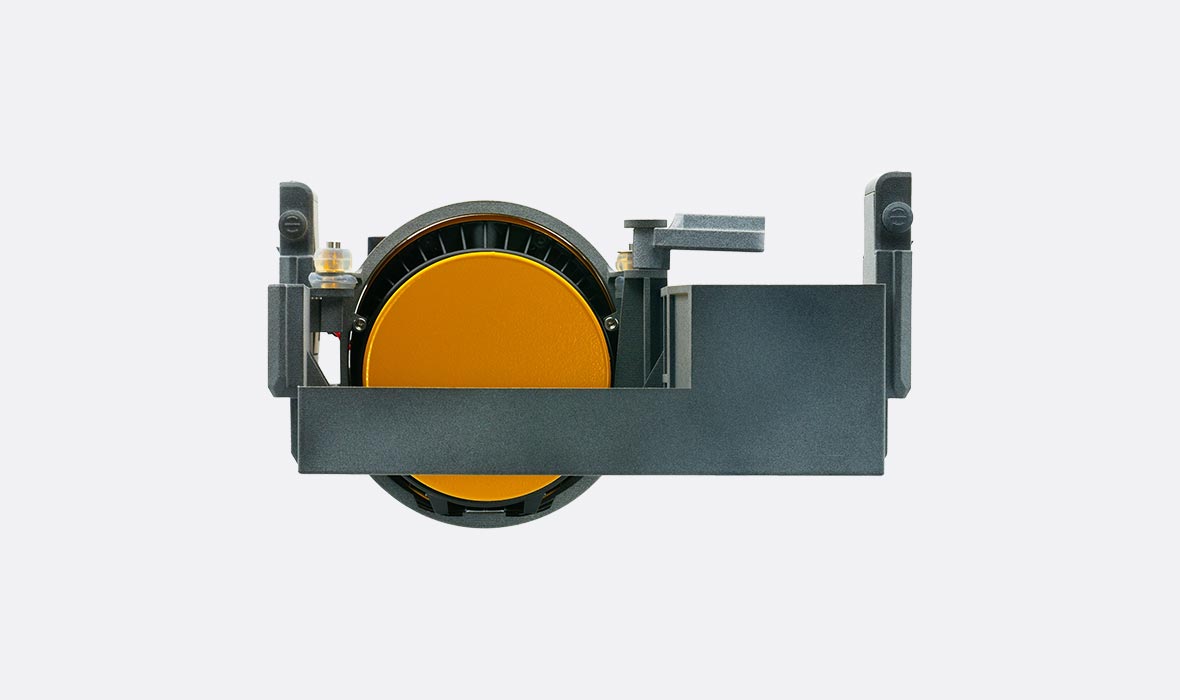

SURVEYOR ULTRA OEM

Ys oem website partners deltaquad surveyyor ultra OEM

100 m

AGL Altitude

3 cm

System precision

2.5 cm

System accuracy

8MP RGB

Embedded camera

View detailed characteristics
Precision3 cm
Accuracy2.5 cm
Typ. flight speed10m/s
Max. AGL altitude100 m
Laser wavelenght905 nm
Laser rangeUp to 300 m
Laser scannerHesai XT32M2X
GNSS-Inertial solutionSBG Quanta Micro
Scanner field-of-view360° x 40.3°
Echoes per shotUp to 3
Shots per secondSingle return: 640 000 points/sec, Dual return: 1280000 points/sec, Triple return: 1920000 points/sec
Scanning frequency20 Hz
Weight0.98 kg (2.2 lbs) battery excluded
SizeL 153 x W 113 x H 117 mm
Autonomy1.2 hours typ.
Power consumption20 W
Operating temperature-10 to +40 °C

LiDAR INTEGRATION

Successful integrations

Discover all integrations

Surveyor-Ultra-OEM YellowScan 1.21.1-1024x576

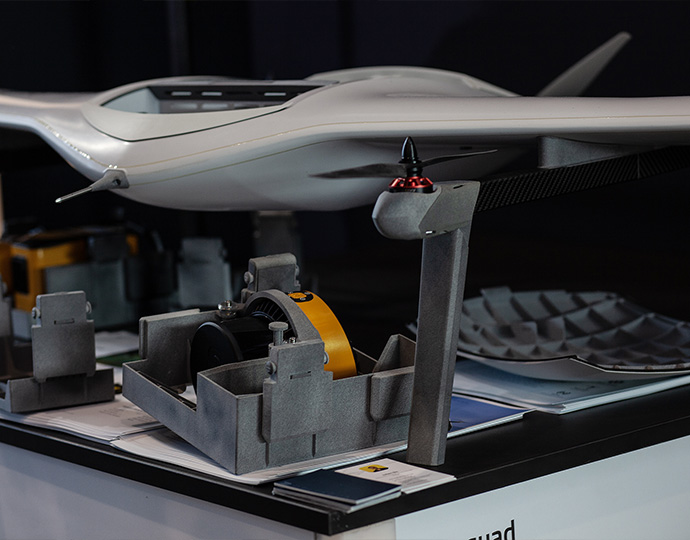

Deltaquad Evo Surveyor Ultra OEM

Deltaquad Evo Mapper+ OEM

2023-Fixed-wings-DeltaQuad-Evo-VTOL-MapperPlus-OEM

Deltaquad Evo Mapper+ OEM

LiDAR INTEGRATION

Relationship between Deltaquad and YellowScan

DeltaQuad has partnered with YellowScan, a leader in LiDAR mapping solutions, to integrate a colorized LiDAR system into its latest Evo UAV model. This collaboration has produced the world’s first fixed-wing VTOL UAV equipped with both YellowScan LiDAR and an RGB camera module. The integration greatly enhances mapping capabilities by delivering georeferenced, colorized LiDAR data over extensive terrain. The DeltaQuad Evo can map up to 500 hectares in a single 2.5-hour flight, setting a new benchmark in the UAV industry.

TESTIMONIALS

They did it !

Integrating YellowScan’s Surveyor Ultra with our DeltaQuad Evo platform is a step forward in aerial surveying efficiency. By combining long-range flight capabilities with high-precision LiDAR, we’ve created a solution that helps professionals do more in less time. This partnership is all about empowering users to work smarter, not harder.

Benji Pauly

Solution Specialist
DeltaQuad

KEY POINTS

Key Information about Deltaquad

Type of UAV: DeltaQuad specializes in hybrid VTOL fixed-wing UAVs that are fully electric and autonomous.

Performance: The DeltaQuad Evo model achieves flight times of up to 4.5 hours with a dual-battery setup, making it a top contender in the electric drone market.

Construction: UAVs are crafted using aerospace-grade materials and undergo rigorous testing to ensure reliability.

Applications: Designed for a variety of commercial and professional uses, DeltaQuad UAVs excel in long-range missions.

PARTNER

Introduction to Deltaquad

DeltaQuad is a leading developer of Vertical Takeoff and Landing (VTOL) fixed-wing unmanned aerial vehicles (UAVs) designed for commercial and professional applications. Built with high-quality materials such as aerospace-grade wiring and military-grade connectors, these UAVs deliver durability and reliable performance under extreme conditions. DeltaQuad’s innovative technology enables extended flight times and ranges, positioning the company as a leader in the UAV industry.
